As I wrote in my PC Performance Analysis, Avowed is one of the few games that can use more than 8 CPU threads. So, I wondered whether the game would run faster with a fully unlocked AMD Ryzen 9 7950X3D. And the answer is yes.
But what do I mean by saying a “fully unlocked” AMD Ryzen 9 7950X3D? Since upgrading our main PC gaming system to an AMD Ryzen 9 7950X3D, we have disabled its second CCD. That’s the CCD that does not have a 3D V-Cache. The reason I’ve disabled it is because some games can use by default the second CCD, something that will hinder performance. Plus, a lot of games could not take advantage of more than 6 CPU cores, so there was no point in running the CPU with both CCDs. Things though may soon change.
Before continuing, here are the specs of our PC gaming system.
- AMD Ryzen 9 7950X3D
- Gigabyte Motherboard X670E AORUS MASTER
- G.Skill Trident Z5 Neo RGB 32GB DDR5 RAM at 6000Mhz
- NVIDIA GeForce RTX 5090 Founder’s Edition
- Corsair PSU HX Series 1200W
- Windows 10 64-bit
- NVIDIA GeForce 572.16 WHQL driver
So after unlocking the second CCD, I tried running Avowed. And, to no one’s surprise, the game defaulted to the second CCD. Thankfully, though, there is a program that allows you to prioritize the CCD with the 3D V-Cache. This program is called “vcache-tray”, and I highly recommend downloading it. And yes, it works.

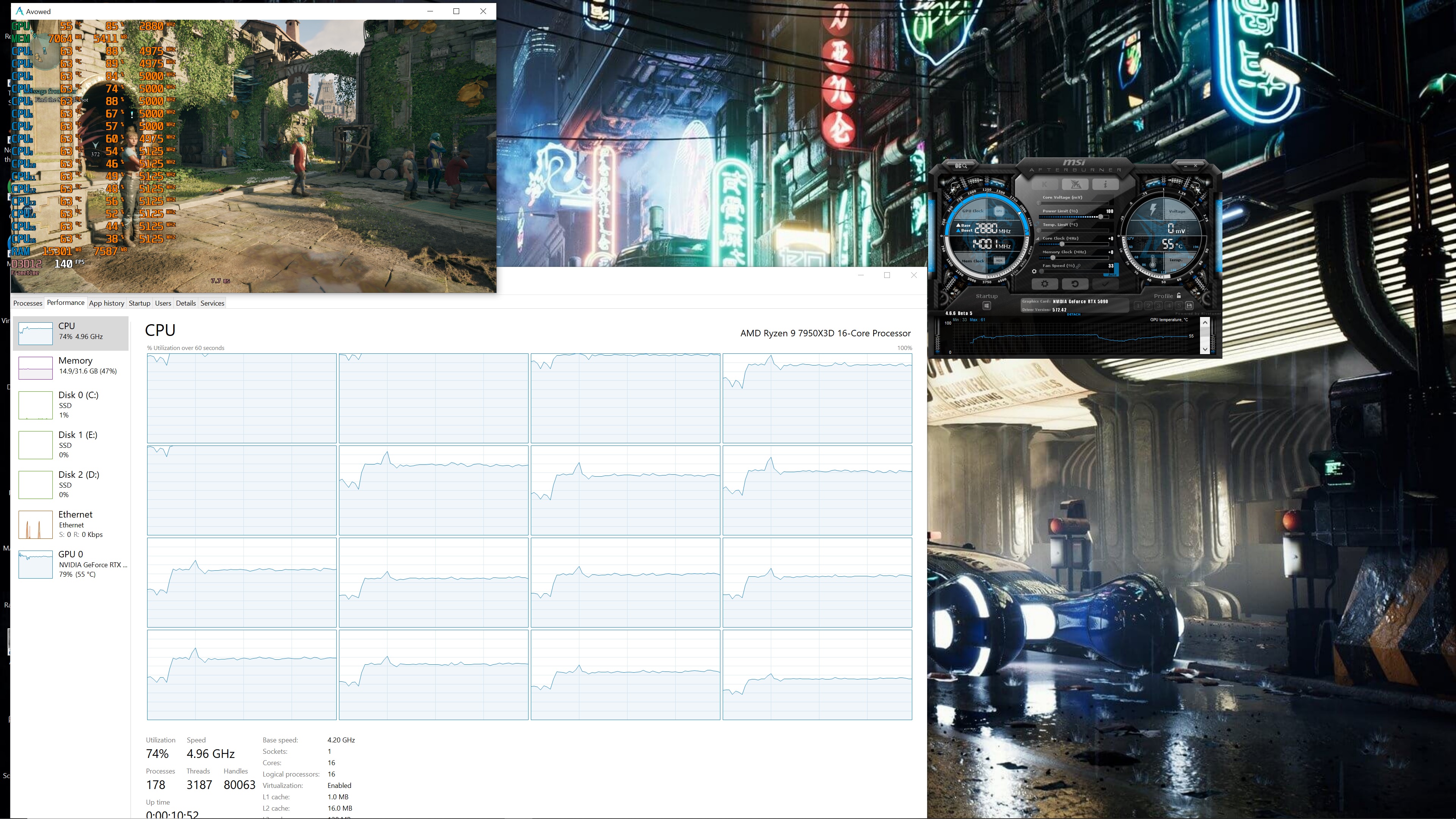

Here is a screenshot at 720p/Epic Settings/No RT. The first six CPU cores are those of CCD0 (that’s the CCD with the 3D V-Cache) and the six bottom CPU cores (CPU9-CPU16) are those of CCD1.

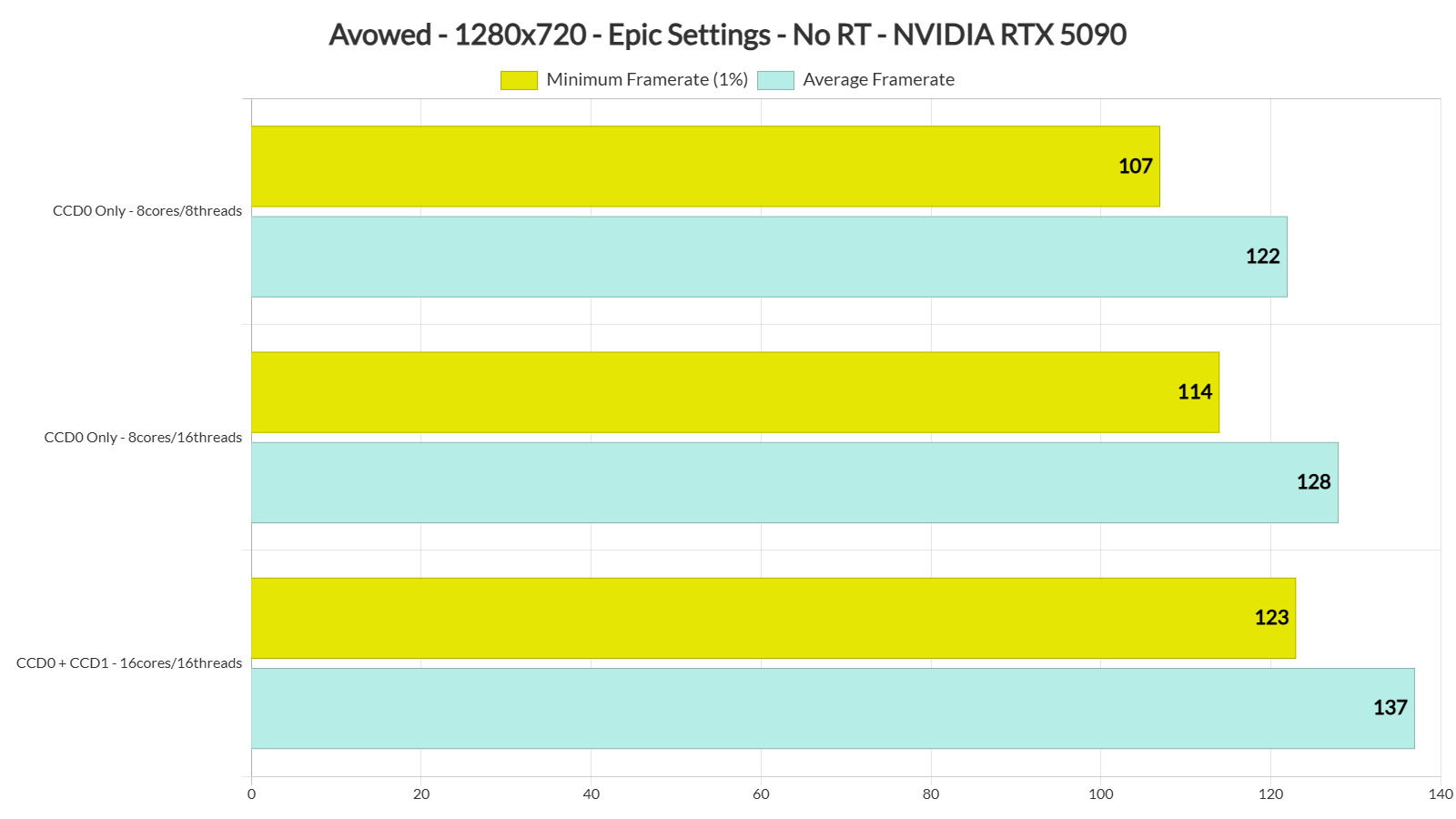

Now the good news is that in our CPU-bound scene, we saw a 15% performance increase over the 8cores/8threads configuration. That’s a pretty healthy performance boost. Compared to the 8cores/16threads config, we only see an 8-9% performance boost. Still, this is one of the rare cases in which a game runs noticeably faster on an AMD Ryzen 9 7950X3D when using both of its CCDs. You can also see that the game used the 7950X3D at around 74% (so there is still room for improvement here).

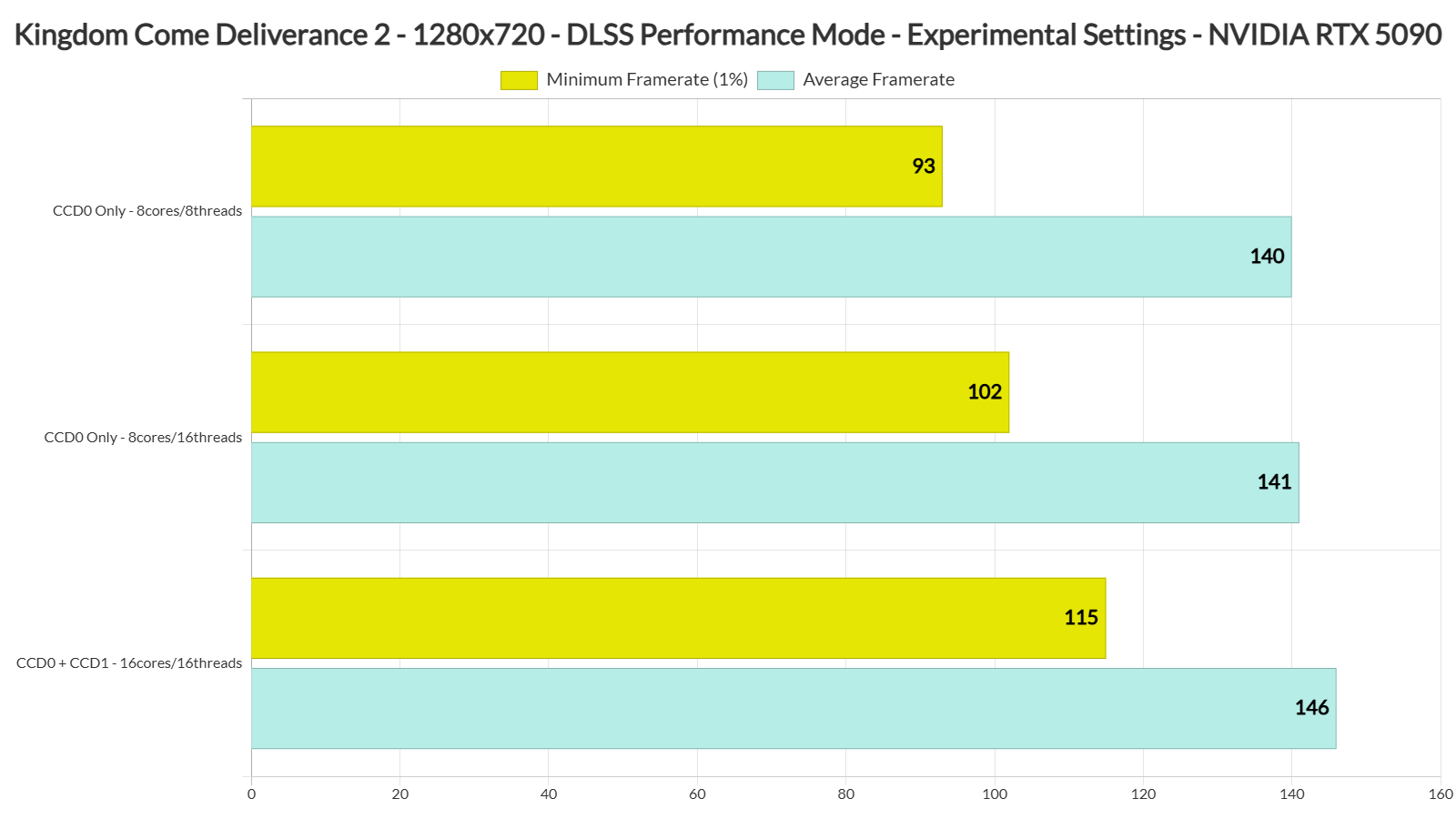

I’ve also tried Kingdom Come: Deliverance 2. And yes, this is another game that benefits from the two CCDs of the AMD Ryzen 9 7950X3D. Without SMT, my minimum framerate increased from 92FPS to 115FPS (that’s a 25% performance increase). The performance difference between the 8cores/16threads and 16threads/16threads configs is around 13%. Pretty solid results in my opinion.
So there you have it. To be honest, I’m pretty impressed with the CPU scaling of Avowed. After all, this is an Unreal Engine 5 game. A lot of people have criticized this engine. But, in the right hands, UE5 can scale incredibly well.
Stay tuned for more!
